BASE CABINETS

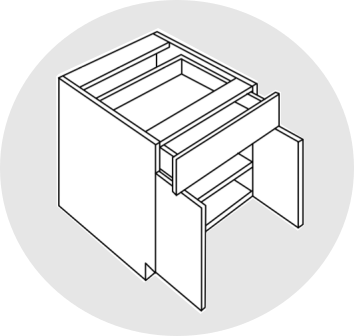

base cabinet 1.png

One drawer/one door or one drawer/two doors



Standard Height: 34 1/2" (Toe Kick is 4 1/4" high, top drawer is 6 1/8" high)

Standard Widths: 9", 12", 15", 18", 21", 24", 27", 30", 33", 36", 39", 42", 45", 48"

Standard Depth: 24"

Cabinet code: Bwidth. For example B36 is a base cabinet that is 36" wide.



Notes:

  • Base cabinets can have a full height door and no drawer. Use -FH at the end of the cabinet code to indicate full height door(s).
  • Any cabinet over 24" wide has two doors.
  • 24" wide cabinets can have one or two doors
  • Drawers have wood dovetail joinery and soft-close drawer slides. All doors have soft-close hinges.
  • For any cabinet with one door, specify which side the hinges will be on (HL or HR).
  • Any base cabinet over 36" wide will have a middle stile for support
  • Modifications to the height, width, or depth of the cabinet can be done to the 1/16" for free. Please be sure to specify the exact measurement desired when making size modifications.
  • Sides of cabinets can be finished for free. Please specify which sides you'd like to be finished.


Sink Base Cabinet

Standard Height: 34 1/2" (Toe Kick is 4 1/4" high, top drawer is 6 1/8" high)

Standard Widths: 18", 21", 24", 27", 30", 33", 36", 39", 42", 45", 48"

Standard Depth: 24"

Cabinet code: SBwidth. For example SB36 is a sink base cabinet that is 36" wide.



Notes:

  • Sink base cabinets have a false panel where a drawer would be on a standard base cabinet.
  • Sink Base cabinets can have a full height door and no false panel. Use -FH at the end of the cabinet code to indicate full height door(s).
  • Any cabinet over 24" wide has two doors.
  • 24" wide cabinets can have one or two doors
  • For any cabinet with one door, specify which side the hinges will be on (HL or HR).
  • All doors have soft-close hinges.
  • Any sink base cabinet over 36" wide will have a middle stile for support
  • Modifications to the height, width, or depth of the cabinet can be done to the 1/16" for free. Please be sure to specify the exact measurement desired when making size modifications.
  • Sides of cabinets can be finished for free. Please specify which sides you'd like to be finished.

three drawer cabinet.png

Three Drawer Base Cabinet

Standard Height: 34 1/2" (Toe Kick is 4 1/4" high, top drawer is 6 1/8" high)

Standard Widths: 12", 15", 18", 21", 24", 27", 30", 33", 36", 39", 42"

Standard Depth: 24"

Cabinet code: DBwidth. For example DB36 is a three drawer base cabinet that is 36" wide.



Notes:

  • All drawers have wood dovetail joinery and have soft-close drawer slides.
  • The top drawer is 6 1/8" high. The bottom two drawers are equal height.
  • Drawer heights can be modified for an extra charge.
  • Modifications to the height, width, or depth of the cabinet can be done to the 1/16" for free. Please be sure to specify the exact measurement desired when making size modifications.
  • Sides of cabinets can be finished for free. Please specify which sides you'd like to be finished.

four drawer cabinet.png

Four Drawer Base Cabinet

Standard Height: 34 1/2" (Toe Kick is 4 1/4" high, top drawer is 6 1/8" high)

Standard Widths: 12", 15", 18", 21", 24", 27", 30", 33", 36", 39", 42"

Standard Depth: 24"

Cabinet code: DBwidth-4D. For example DB36-4D is a four drawer base cabinet that is 36" wide.



Notes:

  • All drawers have wood dovetail joinery and have soft-close drawer slides.
  • The top two drawers are 6 1/8" high. The bottom two drawers are equal height.
  • Drawer heights can be modified for an extra charge.
  • Modifications to the height, width, or depth of the cabinet can be done to the 1/16" for free. Please be sure to specify the exact measurement desired when making size modifications.
  • Sides of cabinets can be finished for free. Please specify which sides you'd like to be finished.
