TRIM PIECES

universal filler.png

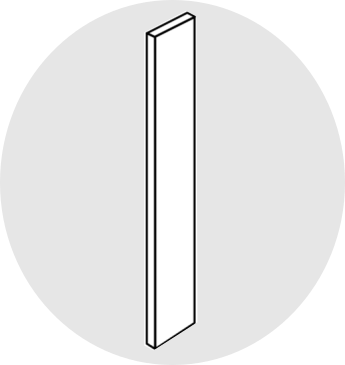

Universal Sub-Filler

Standard Heights: 12", 15", 18", 21", 24", 27", 28", 30", 33", 36", 39", 42", 45", 48", 51", 54", 57", 60", 84", 87", 90", 93", 96", 99", 102"

Standard Widths:  3", 6"

Standard Thickness: 5/8"

Cabinet code: USFwidthheight. For example: USF336 is a piece of universal filler that is 3" wide and 36" high..



Notes:

  • Coordinated to door finish
  • Square edges on all sides
  • To be field-cut and scribed
  • No edge banding on long sides

filler with overlay.png

Filler With Overlay

Wall Filler Heights: 12", 15", 18", 21", 24", 27", 30", 33", 36", 39", 42", 45", 48", 51", 54", 57", 60"

Wall Filler Widths:  3", 6"

Wall Filler Thickness: 5/8" for sub-filler plus 3/4" for overlay filler

Cabinet code: WFLSwidthheight. For example: WFLS336 is a piece of wall filler that is 3" wide and 36" high.


Base Filler Heights: 30 1/4" high- Cabinet Code: BFLS3 or BFLS6. 24" high - cabinet code: BFLS324 or BFLS624. 28 3/16" high - cabinet code: BFLS328 or BFLS628

Base Filler Widths:  3", 6"

Base Filler Thickness: 5/8" for sub-filler plus 3/4" for overlay filler


Tall Filler Heights: 84", 87", 90", 93", 96", 99", 102"

Tall Filler Widths:  3", 6"

Tall Filler Thickness: 5/8" for sub-filler plus 3/4" for overlay filler

Cabinet code: OFLSwidthheight. For example: OFLS384 is a piece of wall filler that is 3" wide and 84" high.


Vanity Filler Heights: 27 11/16" high- Cabinet Code: VBLS3 or VBLS6. 30 1/4" high - cabinet code: VBLST3 or VBLST6. 24" high - cabinet code: HVBFLS3 or HBVFLS6.

Vanity Filler Widths:  3", 6"

Vanity Filler Thickness: 5/8" for sub-filler plus 3/4" for overlay filler



Notes:

  • Filler matches door edge profile and height.
  • Includes square edges on sub filler
  • Toe kick not included
  • To be field-cut and scribed


toe kick.png

Toe Kick

Toe Kick Length: 96"

Toe Kick Width:  4 1/4"

Toe Kick Thickness: 5/8"

Cabinet code: TKST



Notes:

  • Edgebanded in matching material on one long side and two short sides
  • Grain will run from side to side


shoe molding.png

Shoe Molding

Shoe Molding Length: 96"

Shoe Molding Width:  3/4""

Shoe Molding Thickness: 3/4"

Cabinet code: SHOEMOLD



Notes:

  • The ends of the molding pieces are not finished
  • Field-cut to size.



Sub-Rail for Crown Molding

Sub-Rail Length: 96"

Sub-Rail Height:  4", 6", 10"

Sub-Rail Thickness: 2 1/8" - 2 1/4" total from back of cleat to finished front

Cabinet code: Height SUBRL. For example: 4" SUBRL is the sub-rail option that is 4" high.



Notes:

  • Can be applied with or without crown molding.
  • Square edge profile
  • Designed to be installed with the front flush with the cabinet box.
  • Ships in two pieces.
  • Field-cut to size.


Crown Molding*

*to go on sub-rail*

Crown Molding Length: 96", 120"

Crown Molding Height:  3 5/8"

Crown Molding Thickness: 2 9/16" total from back-most edge to front-most edge

Cabinet code: CMD-SUBRL for 96" piece or CMD-SUBRL10 for 120" long piece.



Notes:

  • Can only be used with sub-rail.
  • The ends of the molding pieces are not finished
  • Field-cut to size.


Medium Crown Molding*

*to go on sub-rail*

Medium Crown Molding Length: 96", 120"

Medium Crown Molding Height:  2"

MediumCrown Molding Thickness: 1 3/4" total from back-most edge to front-most edge

Cabinet code: MEDCROWN for 96" piece or MEDCROWN10 for 120" long piece.



Notes:

  • Can only be used with sub-rail.
  • The ends of the molding pieces are not finished
  • Field-cut to size.


Cove Crown Molding

Cove Crown Molding Length: 96", 120"

Cove Crown Molding Height:  3" or 3 1/8" with cleat

Cove Crown Molding Thickness: 2 3/8" total from back-most edge to front-most edge without cleat or 4 1/4" with cleat

Cabinet code: COVE-SUB for 96" piece to go with sub-rail or COVE-SUB10 for 120" long piece to go with sub-rail. COVE for 96" piece with cleat.



Notes:

  • Can be used with sub-rail or by itself (has cleat attached).
  • The ends of the molding pieces are not finished
  • Field-cut to size.



Scribe Molding*

*Used to cover gaps between the cabinet box and a wall

Scribe Molding Length: 96"

Scribe Molding Height:  3/4"

Scribe Molding Thickness: 1/4" total from back-most edge to front-most edge

Cabinet code: SCRIBS



Notes:

  • The ends of the molding pieces are not finished
  • Field-cut to size.



Light Rail*

*Used under wall cabinets to hide under cabinet lighting

Scribe Molding Length: 96"

Scribe Molding Height:  2 1/4"

Scribe Molding Thickness: 2 1/4" total from back-most edge to front-most edge

Cabinet code: LRST-TRAD



Notes:

  • The ends of the molding pieces are not finished
  • Can also be used as crown molding
  • Field-cut to size.
